Waveguide component

Waveguide component

Waveguide component

Waveguide component


    Category
    1. Waveguide Component
    Sub Category
    1. Twistable Waveguide

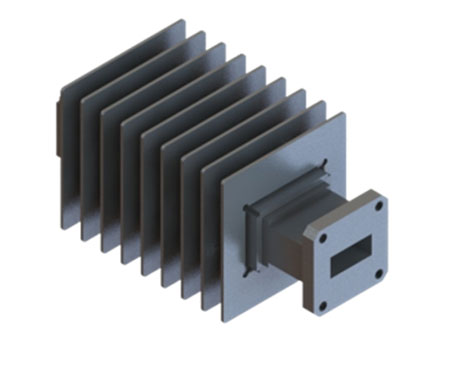

    2. Waveguide Load
    3. Waveguide Terminations

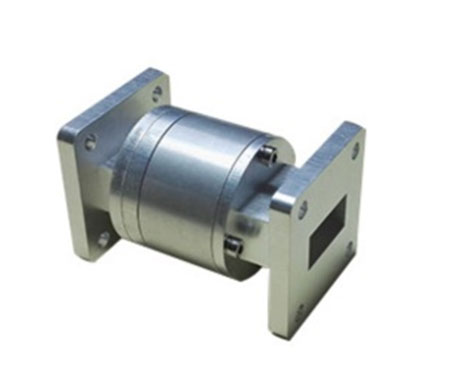

    4. Rotary Joint Waveguide

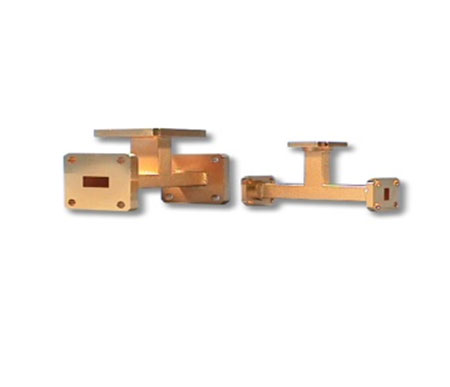

    5. Waveguide TEE

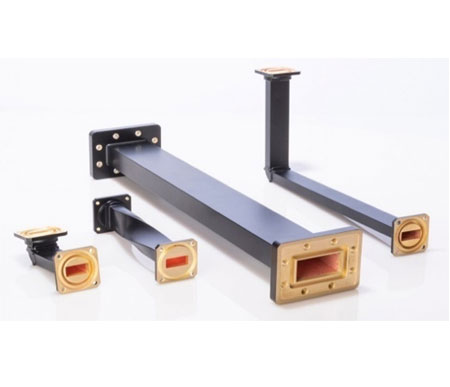

    6. Flexible Waveguides
    7. Waveguide Bends
    8. Waveguide Tube
    Features
    1. Broad Frequency Coverage
    ✔ Available from WR-650 to WR-03 and above (L-band to sub-THz).
    ✔ Ideal for microwave, millimeter-wave, radar, satellite, and 5G/mmWave applications.

    2. Low Loss & High Power Handling
    ✔ Extremely low insertion loss compared to coaxial structures.
    ✔ Excellent power-handling capability for high-power transmit systems.

    3. Precision Machined Construction
    ✔ CNC-machined aluminum, brass, or copper for superior electrical performance.
    ✔ Gold-plated, chromated, or painted surface finish options.

    4. Wide Range of Component Types
    ✔ Bends (E-plane/H-plane), twists, transitions, couplers, attenuators, terminations, filters, adapters, and loads.
    ✔ Standard and custom waveguide assemblies available.

    5. Excellent Isolation & VSWR Performance
    ✔ High return-loss and low VSWR for maximum transmission efficiency.
    ✔ Superior mode purity and low leakage.

    6. Custom Designs & Special Configurations
    ✔ Custom lengths, flanges, mechanical interfaces, and special frequency bands.
    ✔ Pressurized, hermetic, and environmentally sealed options.

    7. Robust & Reliable for Harsh Environments
    ✔ Suitable for outdoor, aerospace, and military-grade systems.
    ✔ Resistant to temperature extremes, vibration, and humidity.

    8. Standardized Flanges & Sizes
    ✔ Compatible with IEC, MIL-Spec, and UG flange standards.
    ✔ Easy integration into existing microwave systems.

    9. Applications
    ✔ Radar and EW systems
    ✔ Satellite communication terminals
    ✔ RF test labs and measurement equipment
    ✔ 5G/mmWave backhaul and links
    ✔ Scientific instruments and industrial heating

    10. Quality Assurance
    ✔ Precision measurement of insertion loss, VSWR, and frequency response.
    ✔ Available with full test reports for mission-critical applications.
