RF Coaxial Attenuator » High power attenuator | Variable att | Fixed attenuator
-
Category
1. RF Coaxial Attenuator
-
Sub Category

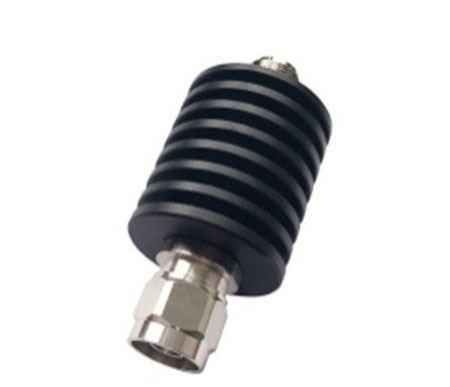

1.High power attenuator
2.Variable att.

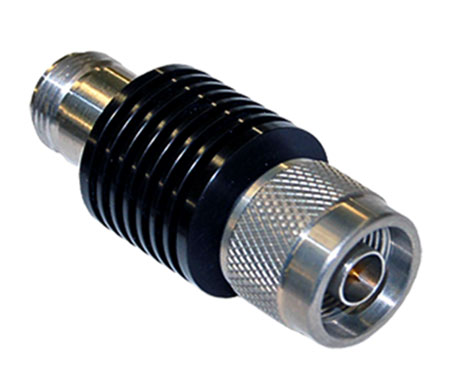

3. Fixed attenuator
-
Features
1. Precise Signal Attenuation
✔ Provides accurate RF signal reduction to protect sensitive components or match system levels.
✔ Available in fixed and variable attenuation models.
2. Wide Frequency Range
✔ Supports DC to 40+ GHz depending on type.
✔ Suitable for RF, microwave, and millimeter-wave applications.
3. Multiple Attenuation Values
✔ Fixed: 1 dB to 30 dB (or higher as per model).
✔ Variable: Continuously adjustable with fine resolution
. ✔ Step attenuators available for automated or lab use.
4. Low VSWR & High Return Loss
✔ Minimizes reflections for stable RF system performance.
✔ Ensures precise amplitude control across the frequency band.
5. High Power Handling
✔ Supports low- to high-power applications depending on design.
✔ Available in soldered, flange, or connectorized coaxial packages.
6. Connector Options
✔ SMA, N-type, BNC, TNC, 7-16 DIN, 4.3-10, or custom.
✔ Male/female and bulkhead options for system integration.
7. Durable & Reliable Construction
✔ Rugged metal housing for long-term stability.
✔ Thermally stable for outdoor, lab, or industrial use.
8. Multiple Package Types
✔ Coaxial inline, PCB-mount, and bench-top modules.
✔ Compact and easy to integrate into existing RF systems.
9. Broad Applications
✔ RF & microwave test and measurement
✔ Wireless communication systems
✔ Radar and satellite front-end protection
✔ Power amplifier input/output leveling
✔ Laboratory and R&D setups
10. Customizable Solutions
✔ Frequency range, attenuation value, power rating, and connector type can be tailored.
✔ Available with calibration or precision specifications on request.
11. Quality Assurance
✔ Tested for insertion loss, VSWR, and attenuation accuracy.
✔ Optional calibration certificates for mission-critical applications.
