RF Diplexer/Duplexer » Ceramic Diplexer
-
Category
1. RF Diplexer/Duplexer
-
Sub Category

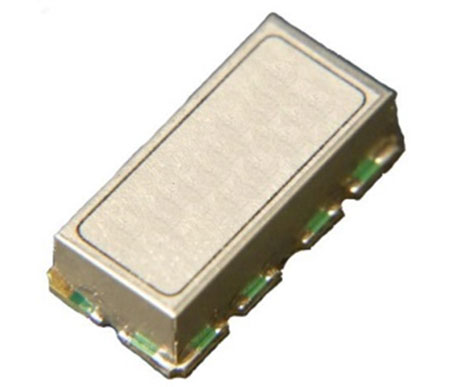

1. Ceramic Diplexer
-
Features
1. Multi-Band Signal Separation & Combining
✔ Enables simultaneous transmission and reception on two different frequency bands.
✔ Efficiently routes signals to the correct path without interference.
2. Wide Frequency Range Support
✔ Customizable frequency bands from VHF to millimeter-wave.
✔ Suitable for broadband and narrowband applications.
3. High Isolation Performance
✔ Excellent port-to-port isolation ensures minimal leakage between channels.
✔ Improves system sensitivity and reduces noise.
4. Low Insertion Loss
✔ High-quality resonator and filter structures ensure minimal signal attenuation.
✔ Maximizes overall system performance and link budget.
5. High Power Handling
✔ Available in low-, medium-, and high-power variants.
✔ Suitable for base stations, repeaters, radars, and high-power communication systems.
6. Compact & Robust Construction
✔ Lightweight, rugged metal-cavity or ceramic-based designs.
✔ High reliability for harsh environments (outdoor/defense-grade).
7. Multiple Filter Technologies
✔ Cavity, LC, ceramic, SAW, BAW, and waveguide-based diplexers available.
✔ Supports high-Q and temperature-stable performance.
8. Customizable Bandwidth & Spacing
✔ Tailored passband widths, TX/RX separation, and rejection levels.
✔ Optimized for customer-specific system requirements.
9. Superior Out-of-Band Rejection
✔ Sharp roll-off for minimizing interference between adjacent channels.
✔ Protects receivers from overload or desensitization.
10. Application Versatility
✔ Ideal for telecom, 5G, defense, satellite, radar, RF front-end modules, and broadcast systems.
✔ Suitable for integrated RF assemblies and test systems.
11. Environmentally Stable
✔ Ensures consistent performance across temperature, humidity, and vibration conditions.
✔ Available with IP-rated weatherproofing for outdoor deployments.
