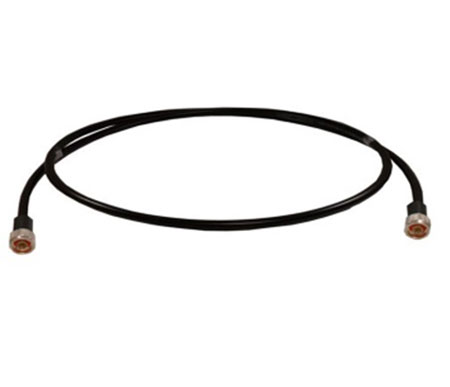

RF Coaxial Cable Assembly » V35 | BNC | Patch cord cable
-
Category
1. RF Coaxial Cable Assembly
-
Sub Category
1. V35
2. BNC
3. Patch cord cable
-
Features
1. Wide Frequency Range
✔ Supports DC to 50+ GHz (depends on cable type).
✔ Suitable for RF, microwave, and high-speed digital applications.
2. Custom Lengths & Configurations
✔ Available in custom lengths, connector types, and cable sizes.
✔ Straight, right-angle, bulkhead, and flexible configuration options.
3. High-Performance Signal Transmission
✔ Low insertion loss, excellent return loss, and stable phase response.
✔ Engineered for low VSWR across the operating band.
4. Rugged & Durable Construction
✔ High-quality cable materials (PTFE, low-loss, semi-rigid, conformable).
✔ Robust strain relief for long service life.
✔ Weatherproof and armored options for outdoor use.
5. Power Handling & Shielding
✔ Superior shielding effectiveness for EMI/RFI protection.
✔ Supports high RF power levels depending on cable type.
6. Multiple Cable Types
✔ RG series, low-loss, semi-rigid, LMR-type, microwave-grade cables.
✔ Phase-stable, high-flex, and precision test-grade assemblies.

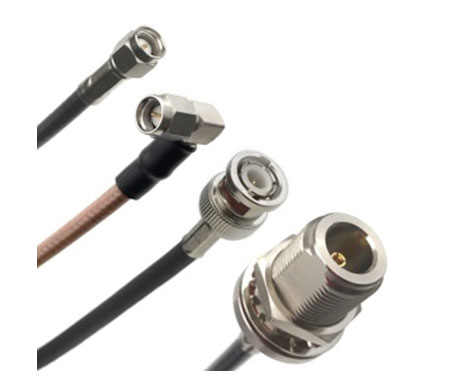

7. Connector Options
✔ SMA, N-Type, BNC, TNC, 2.92mm, 3.5mm, MMCX, U.FL, QMA, 7/16 DIN and more.
✔ In-series and between-series combinations available.
8. Application Versatility
✔ Ideal for telecom, RF labs, aerospace, defense, IoT, test & measurement, and antenna solutions.
9. Tested & Quality Assured
✔ 100% continuity testing.
✔ Optional VSWR, insertion loss and phase-stability test reports.
10. Ready for High Reliability Systems
✔ Designed for mission-critical and high-frequency environments.
✔ Stable electrical performance over temperature and vibration conditions.
